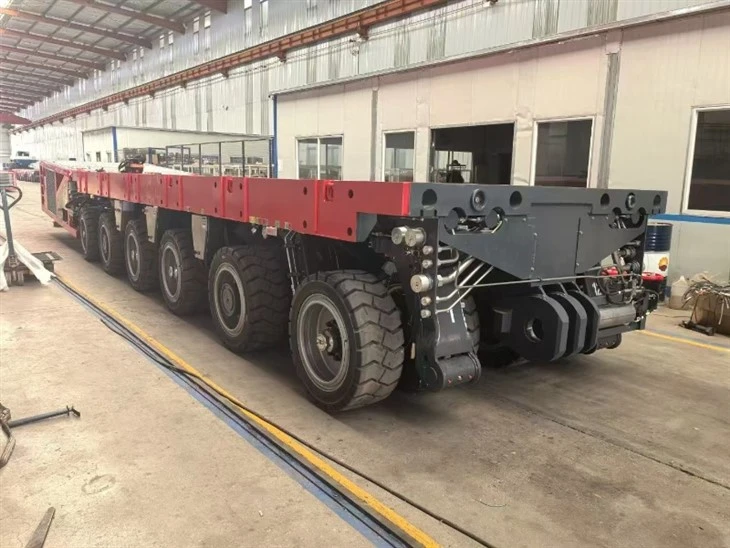

Hydraulic Modular Semi-Trailer Semi-Trailer, Kuj tseem muaj tus kheej lub tsheb lossis tus kheej-propelled module transple, spmt. Nws yog cov khoom tshwj xeeb heev, cov cuab yeej siv thauj khoom hnyav, petely siv nyob rau hauv cov liaj teb, cua tsim, thiab lwm yam, rau kev thauj khoom dhau cov khoom rog.
Modular qauv
Nws muaj ntau cov qauv kev ywj pheej axis (feem ntau {2-8 cov qauv, thiab muaj peev xwm hloov kho cov khoom siv hluav taws xob, thiab muaj peev xwm hloov kho ntau dua, thiab muaj peev xwm ua kom muaj zog los ntawm kev sib xyaw ua ke los ua ke los ntawm kev sib xyaw ua ke rau ntau yam kev thauj khoom sib txawv thiab qhov loj me.
HYDRAULIC TSAV THIAB TSWJ LUB NRUAB
Cov tub ntxhais yog cov kab ke hydraulic, suav nrog kev ncua kev noj qab haus huv, nqa khoom, faib hluav taws xob, uas tuaj yeem kho tau los ntawm Central console lossis chaw taws teeb tswj.
Nqa tau muaj peev xwm
Lub thauj khoom-coj tau muaj peev xwm ua rau kaum tawm ntawm tons, thiab tag nrho} Axis ua ke tuaj yeem ncav cuag ntau txhiab leej tau ua ke, reasor siab rau ntau yam thiab lwm yam khoom siv loj.
Daim Ntawv Thov Kev Pab Cuam
Nws yog tsuas yog siv nyob rau hauv cov chaw nres nkoj, kev tsim kho, cov phiaj xwm hluav taws xob thiab lwm yam xwm txheej, tshwj xeeb tshaj yog rau cov khoom hnyav uas tsis tuaj yeem rhuav tshem lossis muaj qhov yuav tsum tau ua rau muaj kev thauj mus los ruaj khov.
Cov Duab Ntau Lawm
Cov ntawv tshwj xeeb
|
Tsis yog. |
lub npe |
chaw ua uas tsis tau haus |
||
|
1 |
Chav tsev (qag) |
4 |
6 |
|
|
2 |
Ntev (hli) |
15600 |
8.4 |
|
|
3 |
Dav (hli) |
2430 |
||
|
4 |
Qhov siab (hli) |
1520±350 |
||
|
5 |
Qag deb (mm) |
1400 |
||
|
6 |
tread (hli) |
1450 |
||
|
7 |
Qag load (t) |
44 (v tsawg dua lossis sib npaug rau 0. 5 km / h); 34,5 (v Tsawg dua lossis sib npaug nrog 4 km / h) |
||
|
8 |
Luj / qag (t) |
4.5 |
||
|
9 |
Them pob khoom / qag (t) |
39.5 (v Tsawg dua lossis sib npaug rau 0. 5 km / h); 30 (v<4 km/h) |
||
|
10 |
Ntau tshaj lub kauj |
230 Qib |
||
|
11 |
Kauj Ruam |
Yim - Cov kauj ruam, transverse, oblique, chaw nruab nrab, pendulum |
||
|
12 |
LOG HOM |
355/65R15 |
||
|
13 |
Ntug |
9.75-15 |
||
|
14 |
Log tsheb rau ib tug qag |
4 |
||
|
15 |
No. Ntawm Tsav Bogies |
2 |
4 |
|
|
16 |
Tsis tau. Ntawm cov neeg tsav tsheb bogies |
4 |
6 |
|
|
17 |
Max tsav tsheb quab yuam / module |
125 |
250 |
|
|
18 |
Cav / fais fab |
330 ~ 390kw |
||
|
PPU cov ntaub ntawv |
||
|
Lub zog hluav taws xob module chav (Pa):390kw |
||
|
|
||
|
1 |
Tus qauv |
P390 |
|
2 |
Hwjchim |
390kw / 2100rpm |
|
3 |
Qho hnyav |
8000kg |
|
4 |
Qho ntev |
4350 hli |
|
5 |
Qhov dav |
2310mm |
|
6 |
Qhov siab |
1080mm |
|
7 |
Nqus Plab Qauv |
Theem peb ntawm Tuam Tshoj txoj kev tsis-kev |
|
8 |
Roj Tank Ntim |
400L |
|
9 |
Hydraulic tank ntim |
750L |
|
10 |
Nominal voltage ntawm cov hluav taws xob |
Dc24v |
|
11 |
Qhov siab tshaj plaws axis uas tuaj yeem tsav |
40 |
TEST rau kev nqa khoom tom qab kev ua tiav tiavua ntej tha xim.
Cov axles sib txawv tuaj yeem xaiv
|
Axis Module Chav |
|
|
Rau axis Txoj kab |
|
|
|
|
|
Cov ntaub ntawv txheej txheem ntawm SPMT6243.46 |
|
|
1 |
Kev Tsav Tsheb Lub Powers 4 x60Kn =240 kn |
|
2 |
Txoj kev sib dhos 7.00% |
|
3 |
Yaum yuam kom 55 * {6=330 kn |
|
4 |
Noj mov hov ceev {{0 {}}. 5km / h |
|
CEEB TOOM & LOAD |
|
|
5 |
Tus kheej qho hnyav (Max.) 28000Kg |
|
6 |
Payload (tag nrho) 260000kg |
|
7 |
Tag nrho qhov hnyav 288000Kg |
|
8 |
Axial yam ris 48000KG |
|
Qhov loj |
|
|
9 |
Tag nrho ntev 8400 hli + tus miv |
|
10 |
Tag nrho cov dav 2430mm |
|
11 |
Thauj siab 1500 hli(± 350 hli) |
|
12 |
Tsiv qhov siab 1500 hli |
|
13 |
Lub laub (Ntev) 1400mm |
|
14 |
Log Teeb (Crosswise) 1450mm |
|
15 |
Lub log ntsuas 620 hli |
|
Kev tso tseg kev tsav tsheb ib yam |
|
|
16 |
Tus lej Tag Nrho 12 |
|
17 |
Tsav 4 |
|
18 |
Yaum 6 |
|
19 |
Tus tsav 2 |
|
Plaub Kab axis |
|
|
|
|
|
Cov ntaub ntawv txheej txheem ntawm SPMT4243.24 |
|
|
1 |
Kev Tsav Tsheb Lub Powers 2x60kn =120 kn |
|
2 |
Txoj kev sib dhos 5% |
|
3 |
Yaum yuam kom 55 * {4=220 kn |
|
4 |
Noj mov hov ceev {{0 {}}. 5km / h |
|
CEEB TOOM & LOAD |
|
|
5 |
Tus kheej qho hnyav (Max.) 18500kg |
|
6 |
Payload (tag nrho) 173500kg |
|
7 |
Tag nrho qhov hnyav 192000Kg |
|
8 |
Axial yam ris 48000KG |
|
Qhov loj |
|
|
9 |
Tag nrho ntev 5600mm +tus miv |
|
10 |
Tag nrho cov dav 2430mm |
|
11 |
Thauj siab 1500 hli(± 350 hli) |
|
12 |
Tsiv qhov siab 1500 hli |
|
13 |
Lub laub (Ntev) 1400mm |
|
14 |
Log Teeb (Crosswise) 1450mm |
|
15 |
Lub log ntsuas 620 hli |
|
Kev tso tseg kev tsav tsheb ib yam |
|
|
16 |
Tus lej Tag Nrho 8 |
|
17 |
Tsav 2 |
|
18 |
Yaum 4 |
|
19 |
Tus tsav 2 |
Qhov Zoo Ntawm Hydraulic Axles Modular Trailer
1.. Hydraulic Rho Tawm System
- Independent Kev ncua: Txhua lub log teeb tau tsa tau tsa thiab qis dua ntawm nws tus kheej kom hloov mus rau txoj kev tsis sib xws thiab tiv thaiv kev ruaj ntseg ntawm cov khoom thauj.
- Tsis siv neeg ntsuas: qhov siab ntawm txhua tus qauv tuaj yeem hloov kho hauv lub sijhawm los ntawm cov kab ke hydraulic kom paub tseeb tias qib ntawm cov khoom thauj.
- Qhov siab hloov kho: Qhov siab ntawm cov khoom thauj khoom tuaj yeem raug tsa thiab txo qis kom yooj yim rau kev thauj khoom thiab kev thauj khoom lossis hla cov nyom qis.
2. Ntau-Axis Steard System
- Txhua lub log kauj: txhua lub log teeb tsa tau ywj pheej xws li lub kauj lub vojrle, kab rov tav thiab kab rov tav thiab cov kab ke kom txo lub vojvoog.
- Synchronous Kev tswj: Txhua cov modules yog synchronized los xyuas kom muaj kev sib xws ntawm kev tsheb ciav hlau ntawm kev thauj mus los ntev.
3. Ultra-siab load thiab ruaj khov
- Load-ntsuas tus qauv: Cov kab ke hydraulic tau faib cov thauj khoom kom tsis txhob muaj cov thoob plaws hauv zos overload.
- Tsawg lub chaw ntawm txoj kev sib nqus: cov khoom thauj tau ze rau hauv av txhawm rau txhim kho kev tiv thaiv kev tawm tsam.
4. Fais fab thiab braking system
Txhua lub log tsav: qee cov qauv yog nruab nrog cov log fais fab, uas tuaj yeem txav cov kev ncua deb ntawm lawv tus kheej, txo qis kev vam khom rau cov tsheb laij teb.
5. Kev Sawv Cev Sawv Cev
- Txhua lub log teeb yog nruab nrog hydraulic lossis cov nres tsheb ua kom muaj kev nyab xeeb hauv kev nyab xeeb hauv kev nyab xeeb, tswj hwm ntse
- Kev tswj cov chaw taws teeb tswj: Txhawb cov chaw taws teeb wireless, thiab tus neeg teb xov tooj tuaj yeem saib xyuas cov xwm txheej tsheb.
- Sensor Saib Xyuas: Cov lus tawm tswv yim tiag tiag ntawm load, siab, lub kauj kaum sab xis thiab lwm cov ntaub ntawv los tiv thaiv ua tsis tiav.
6. Yooj thiab Siv Zog
- Modular Splicing: nce lossis txo tus lej ntawm cov qauv raws li cov khoom thov thauj khoom, thiab txhawb nqa ntsug lossis kab rov tav.
- Multi-signario kev yoog raws: muaj peev xwm sib phim nrog cov txee sib txawv (xws li concave txee, pav ca rhawv) lossis cov khoom siv li li Lifting).
Kawm paub ntau ntxiv txogLiangyuLub tsheb
Liangyu lub tsheb yog ib qho zoo tshaj plaws semi-trailer cov chaw tsim khoom nyob hauv Suav teb.
Thiab Liangyu lub tsheb tau ua tiav tau nkag mus ntau tshaj 30 lub teb chaws thoob ntiaj teb.
Cov FAQ
Q: Peb muab cov kev pabcuam twg?
A: Liangyu muaj kev muag khoom tshaj lij thiab pab pawg muag khoom tom qab, los ntawm cov kev sib txuas lus customization, yuav, tsheb thauj mus los tom qab muag. Liangyu tau muaj cov kev xav tau zoo rau txhua lub tsheb. Txhua lub tsheb yuav tsum tau tshuaj xyuas ua ntej lawv xa mus rau cov neeg siv khoom. Thiab tom qab ntawd cov neeg yuav khoom tuaj yeem txhawj xeeb thoob plaws hauv cov txheej txheem thiab yooj yim ua tiav thiab xa tawm.
Q: Nws puas muaj los luam tawm peb tus kheej hom ntawm lub tsheb?
A: Yog, tsheb tuaj yeem kho tau raws li cov neeg siv khoom thov, thiab cov qhua tuaj noj mov lub hom tuaj yeem ua kom pom ntawm lub tsheb.
Q: Yuav ua li cas txog kev tiv thaiv cov khoom?
A: Qhov kev tiv thaiv yog ob xyoos.
Txaus siab rau lub ntiaj teb kev pab cuam ntawm kev paub hom zoo
Q: Yuav ua li cas rau nkoj nws?
A: Cov shocks tuaj yeem xa los ntawm 20ft thawv, 40ft thawv, 40ft HATAGE,
Qhib cov thawv qhib, tiaj tiaj tiaj, lub txaj txaj, Ro-Ro nkoj lossis ntau
Nws yuav raws li qhov loj me cov khoom lag luam.
